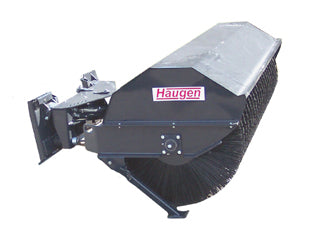

Haugen Power Angle Broom - Skid Steer Hydraulic Angle Sweeper
Haugen Power Angle Broom - Skid Steer Hydraulic Angle Sweeper
SKU: HAB 72-H
Couldn't load pickup availability
- Regular price
- Price: $8,460.00
- Regular price
- List Price:
- Sale price
- Price: $8,460.00
- Unit price
- / per
Share
PRODUCT DESCRIPTION
Clear snow, debris, and loose material off pavement, lots, and yards without stopping to shovel. The Haugen Power Angle Broom mounts to your skid steer and sweeps a 72" or 84" path, with a hydraulic angle so you can throw material to either side instead of pushing it straight ahead. The 32" poly brush handles everyday sweeping; step up to the poly/wire combination bristle option if you're working gravel, ice, or packed debris.
Built Haugen heavy: the hydraulic motor sits inside the broom housing where it's protected from impact, and storage stands keep the bristles off the ground between jobs so they don't flat-spot or wear unevenly. Comes complete with hoses and couplers, runs on 15-35 GPM of auxiliary hydraulic flow. A wire harness kit (sold separately, required for the hydraulic angle function) and an optional water kit for dust control are also available.
Key Features
- 32" diameter poly brush, all-poly or poly/wire combination bristles
- 30-degree hydraulic angle, throws material left or right
- Hydraulic motor mounted inside the broom housing for protection
- Built-in leveling system for consistent ground contact
- Storage stands keep bristles off the ground when not in use
- Comes with hoses and couplers
- Runs on 15-35 GPM auxiliary hydraulic flow
- Optional water kit available for dust control
Specifications
| Spec | 72" | 84" |
|---|---|---|
| Angled Width | 63.50" | 74.25" |
| Brush Diameter | 32" | 32" |
| Bristle Type | All poly (standard); poly/wire combination available | All poly (standard); poly/wire combination available |
| Hydraulic Flow Range | 15-35 GPM | 15-35 GPM |
| Angle | 30 degrees, hydraulic | 30 degrees, hydraulic |
| Weight | 1,050 lbs | 1,150 lbs |
| Mount | Universal skid-steer quick attach | Universal skid-steer quick attach |
| Includes | Hoses and couplers | Hoses and couplers |
| Requires | Wire harness kit (sold separately) for hydraulic angle function | Wire harness kit (sold separately) for hydraulic angle function |
| Sweeping Width (Straight) | 72" | 84" |
| Overall Width | 83" | 95" |
| Overall Height | 36" | 36" |
| Overall Front to Back | 57" | 57" |
| Bristle Count (Zig-zag) | 36 | 40 |
| Bristle Count (Straight) | 2 | 2 |
| Max Hydraulic Pressure | 3,500 PSI | 3,500 PSI |
| Travel Direction | Forward | Forward |
