Dual Side Flow Bucket Light Material - Top Dog Attachments

Dual Side Flow Bucket Light Material - Top Dog Attachments

SKU: 9000144-72
View Cart
Price: $12,417.14
List Price: $14,000.00
Price: $12,417.14
You Save: $1,582.86 (11%)
Description:

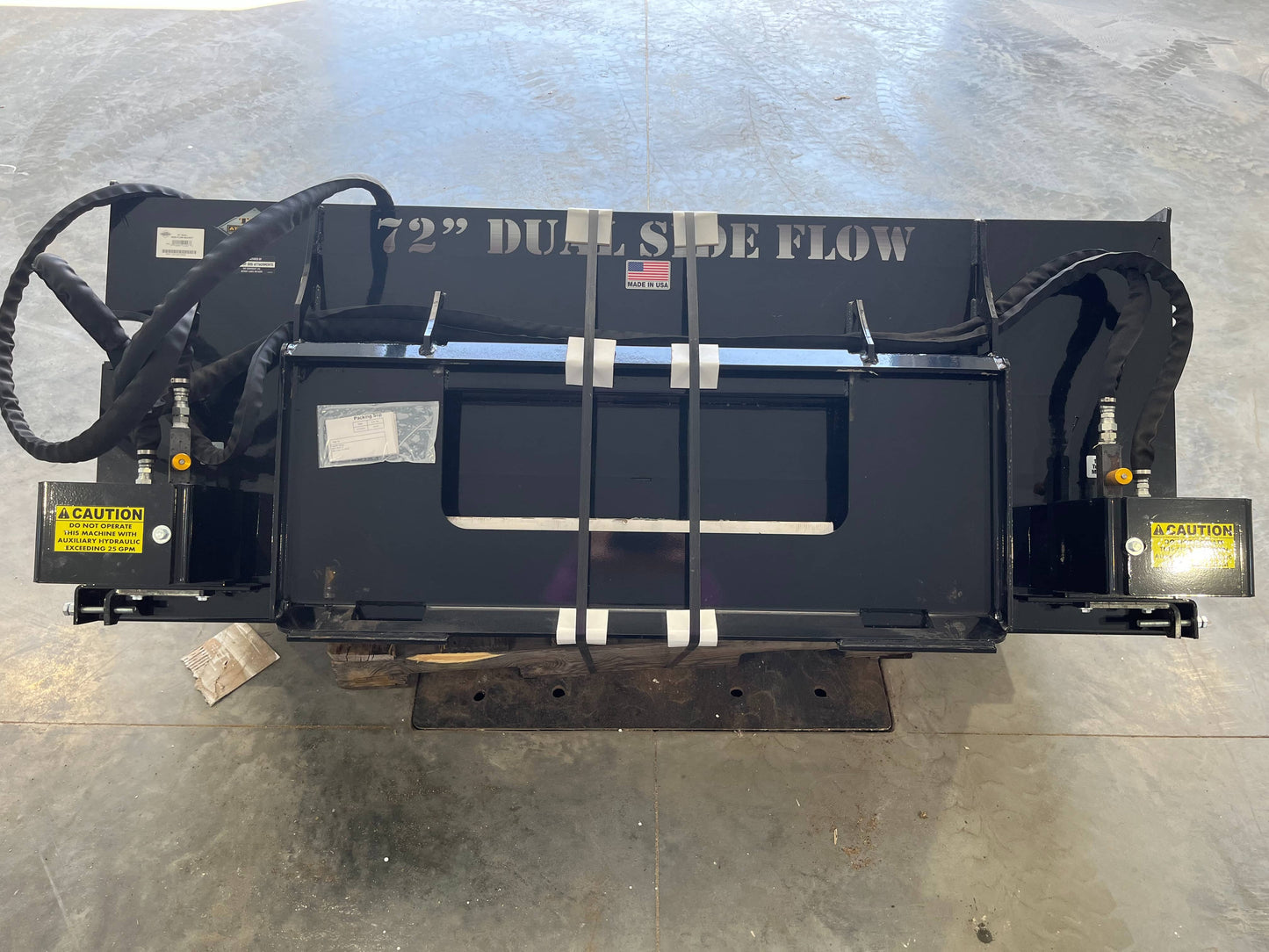

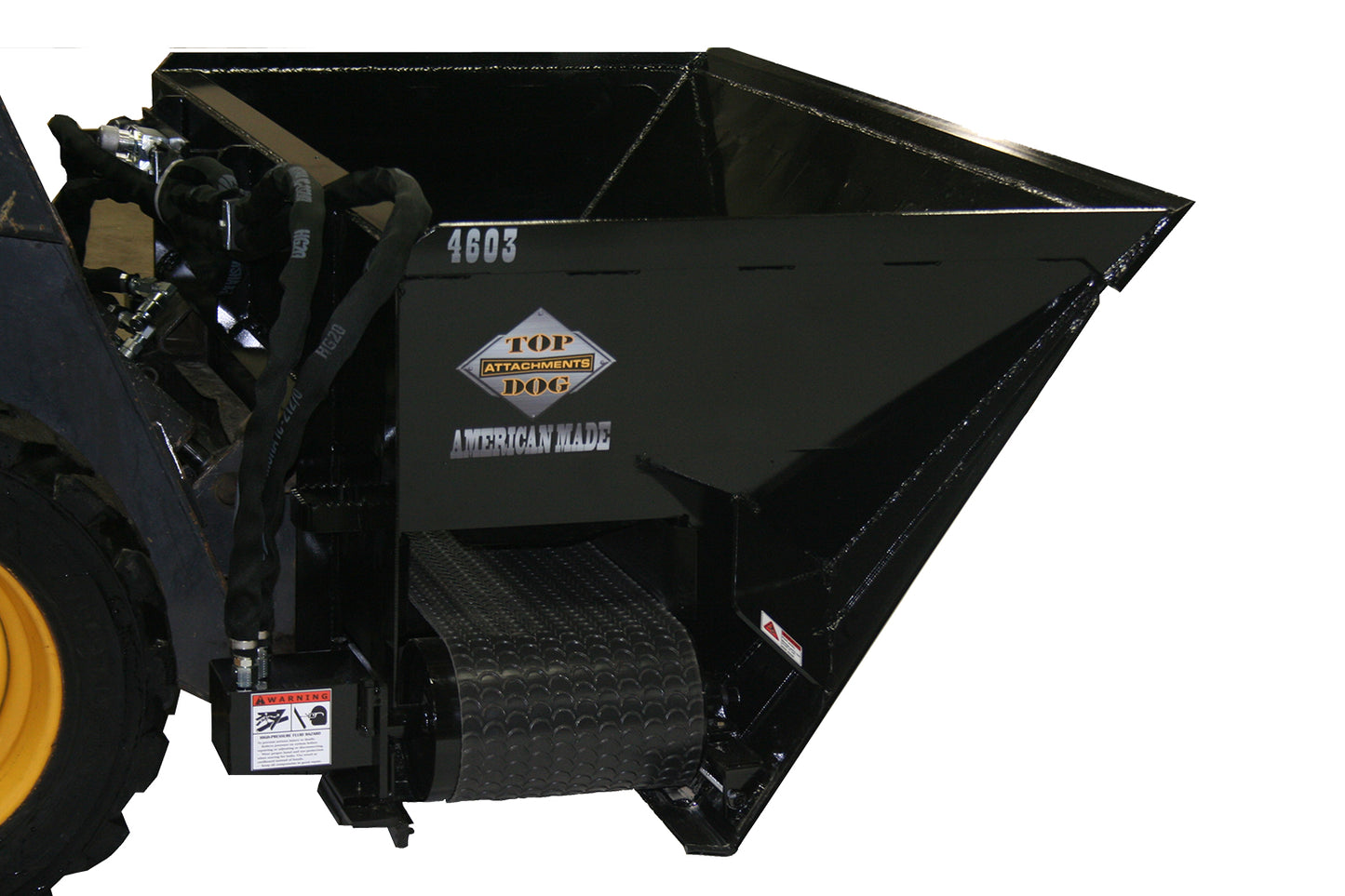

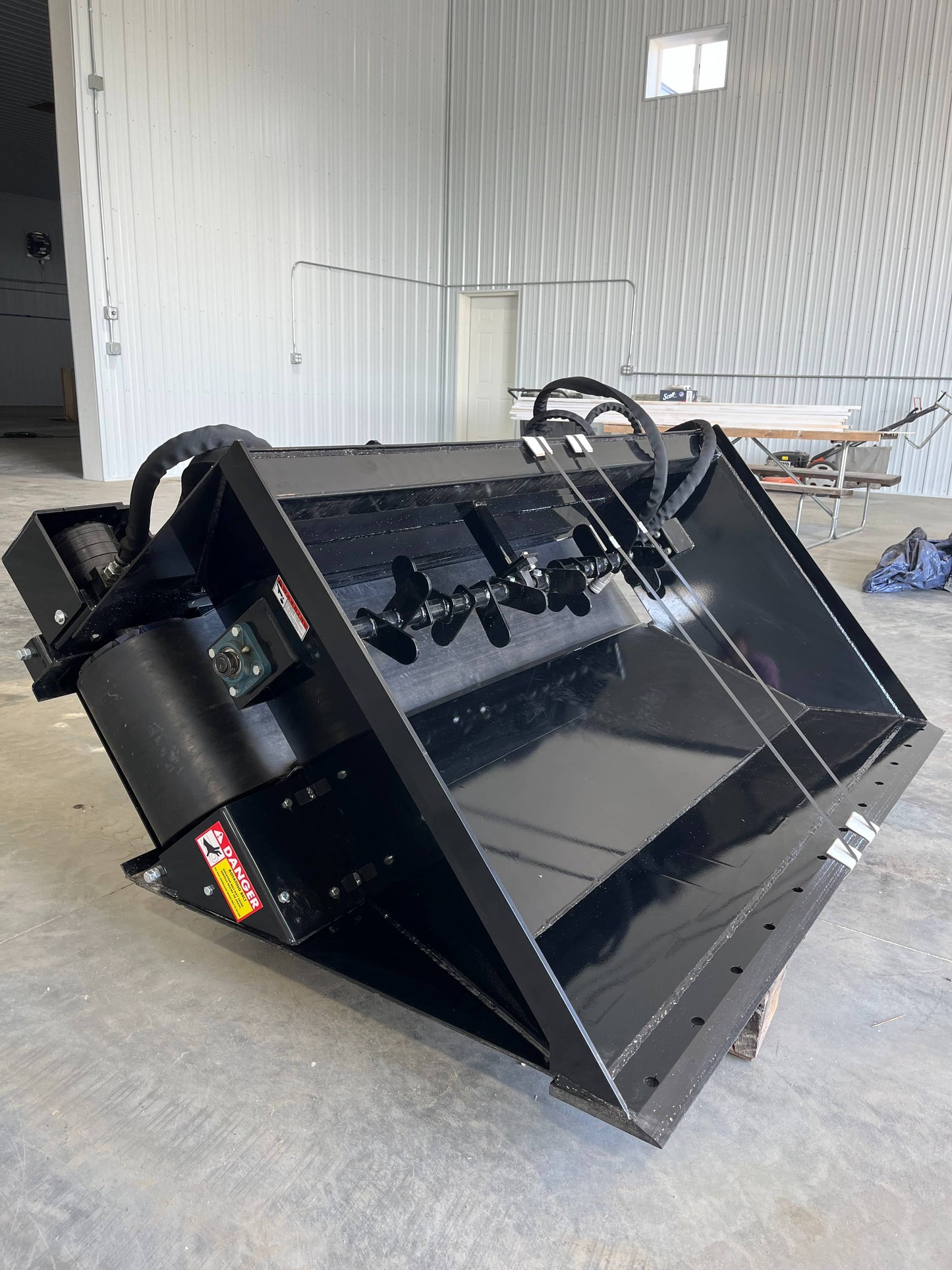

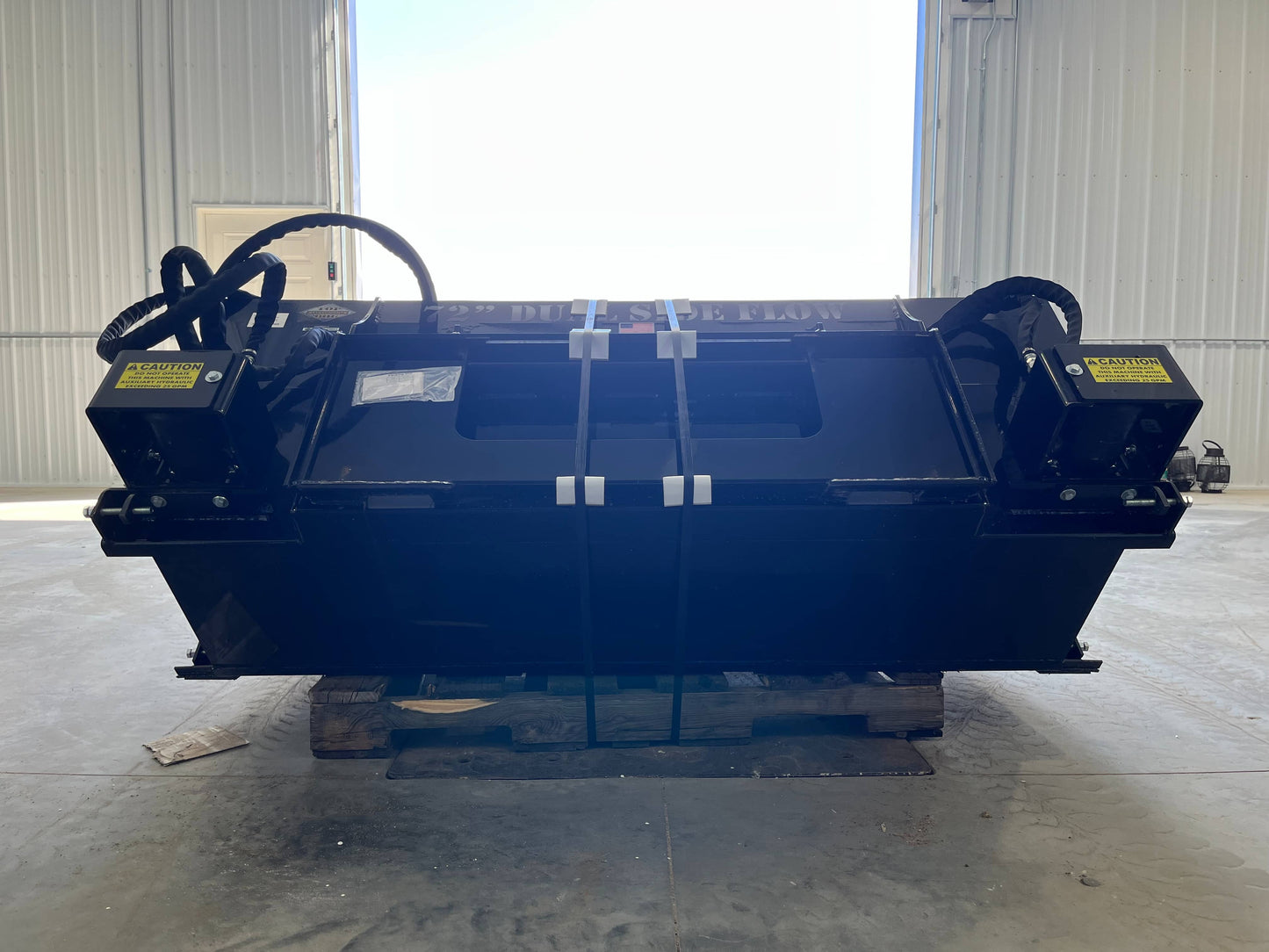

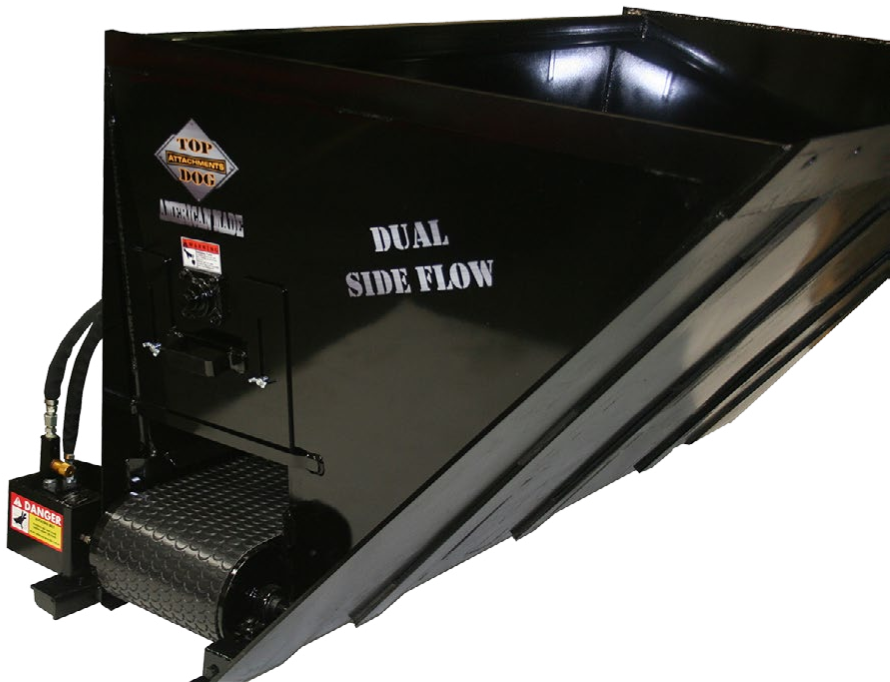

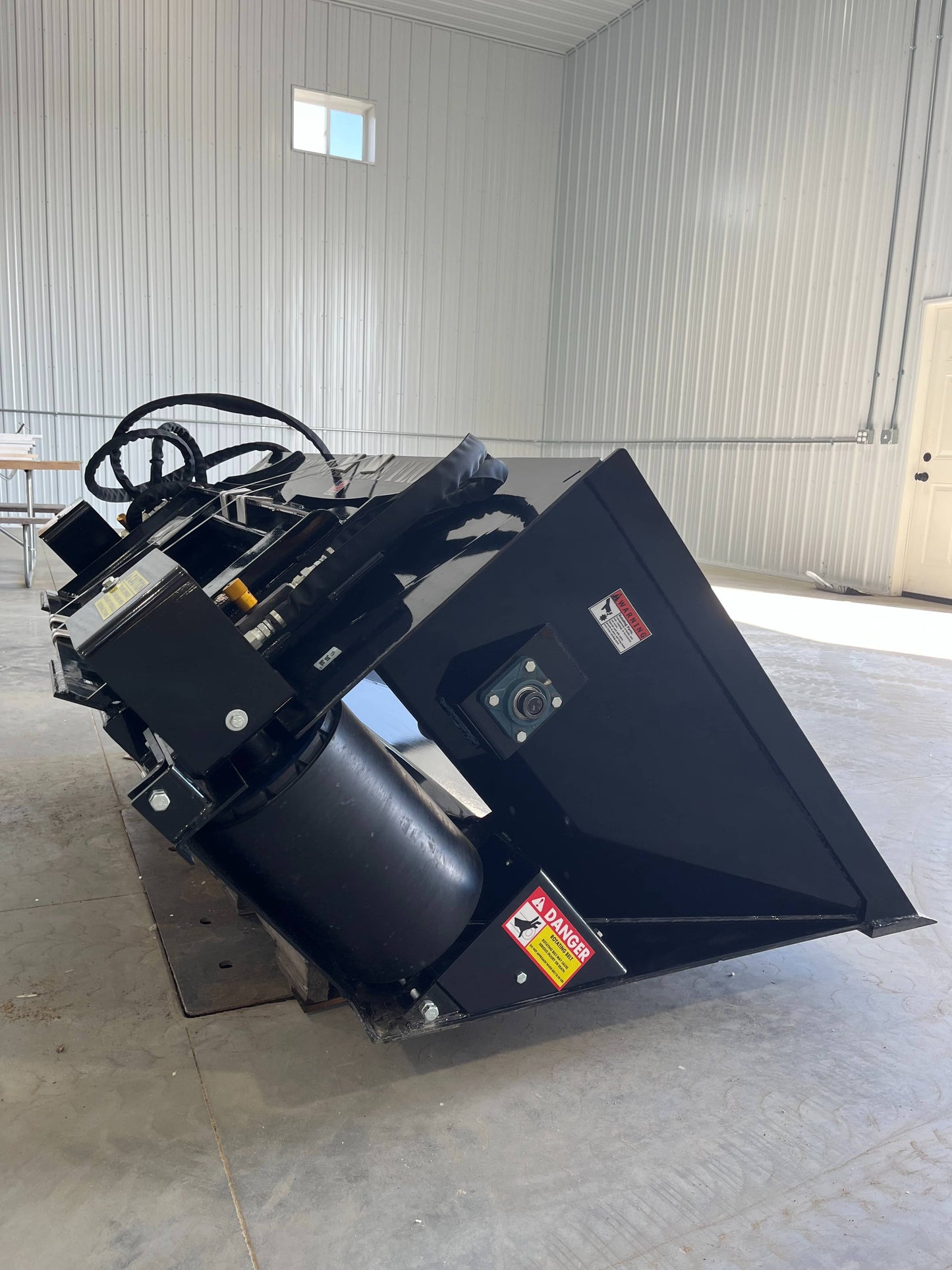

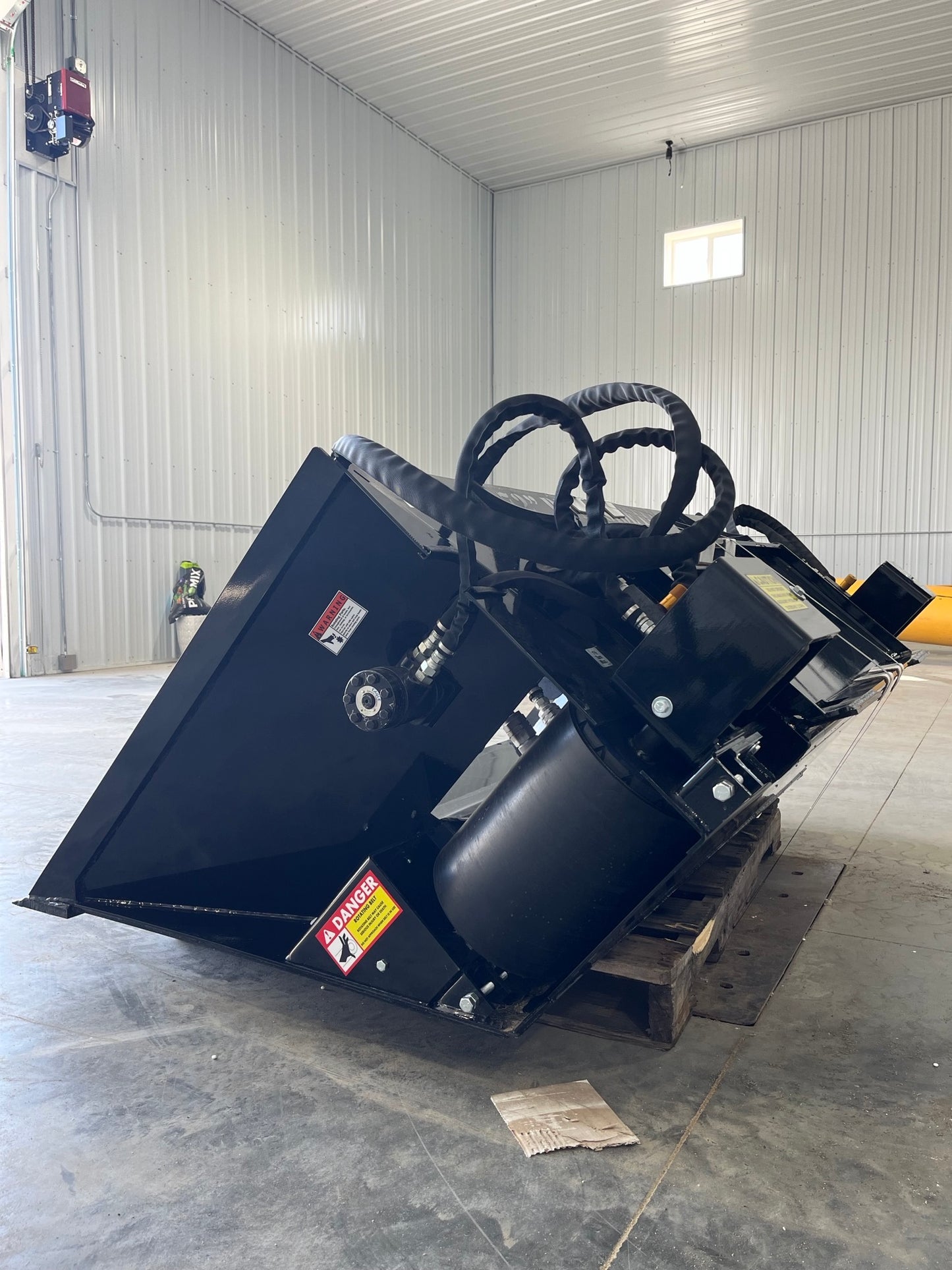

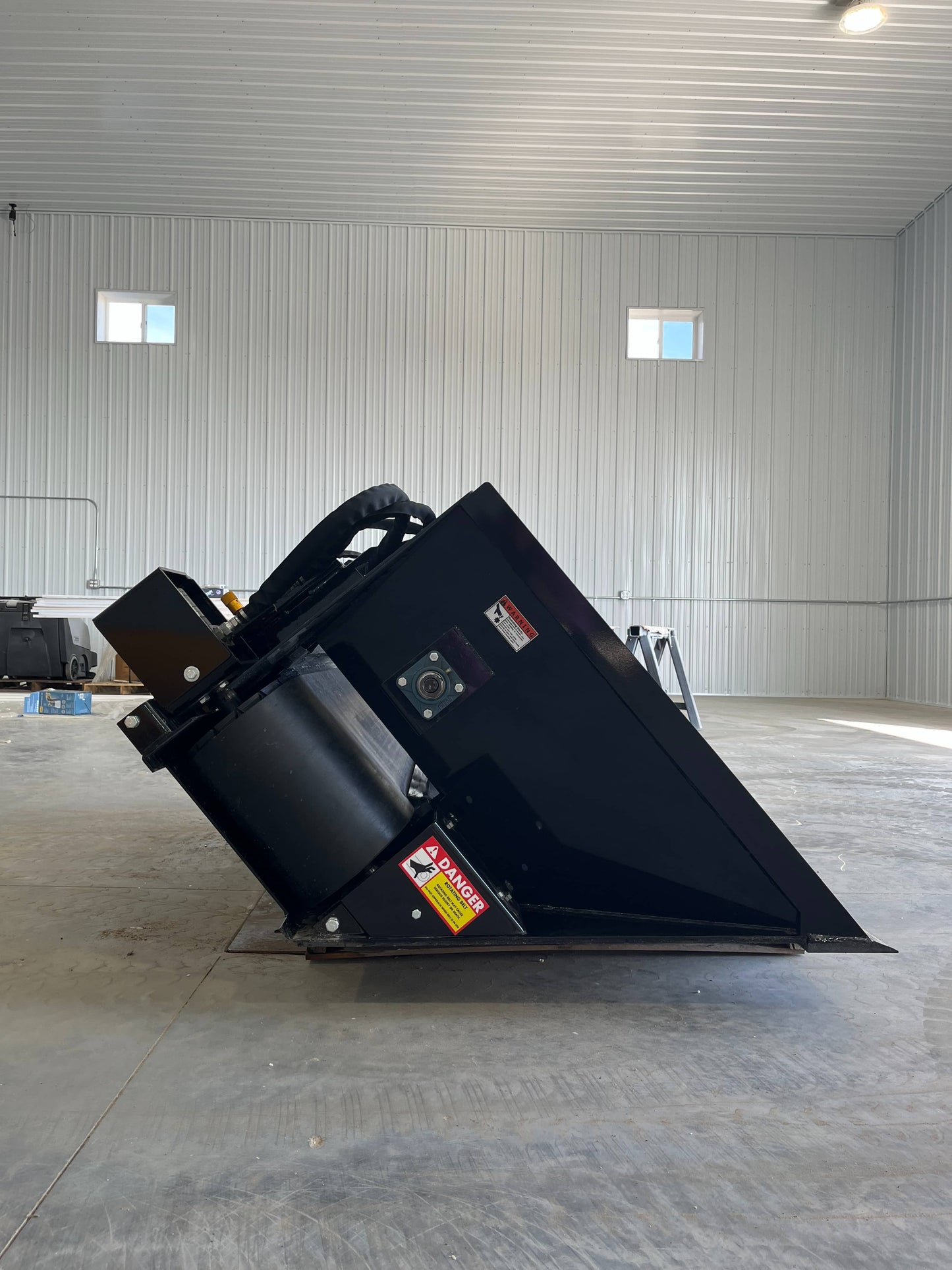

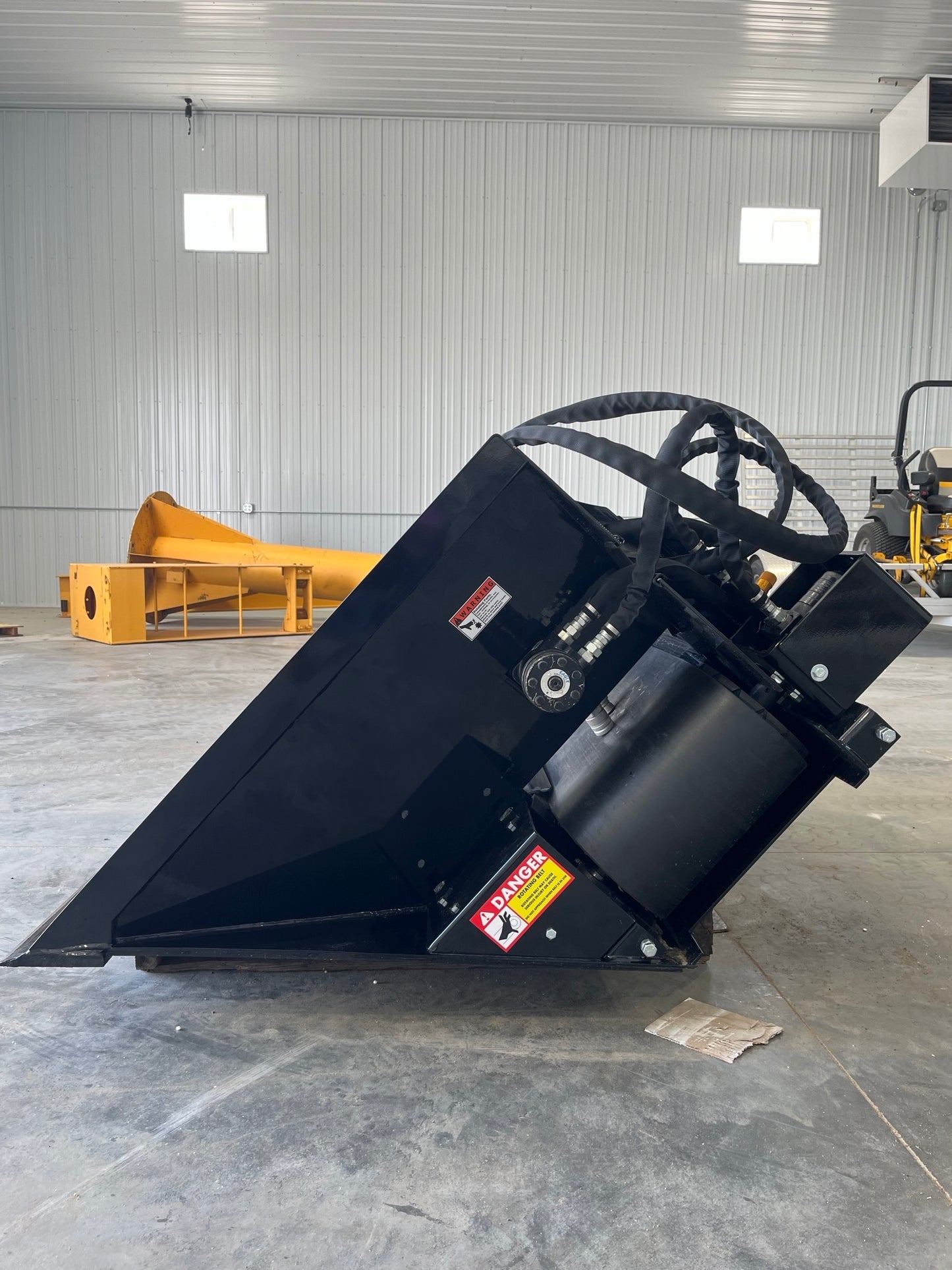

Introducing the high capacity, light material bucket attachment with dual side discharge. the perfect blend of quality, functionality. The bucket allows material to be scooped up and moved out through one of two side discharge openings. The operator rotates and lowers the attachment to become a bucket able to scoop material up and then rotates and raises to become a spreader/feeder.

Key Features:

Made in America.

The side flow bucket has three orbit motors:

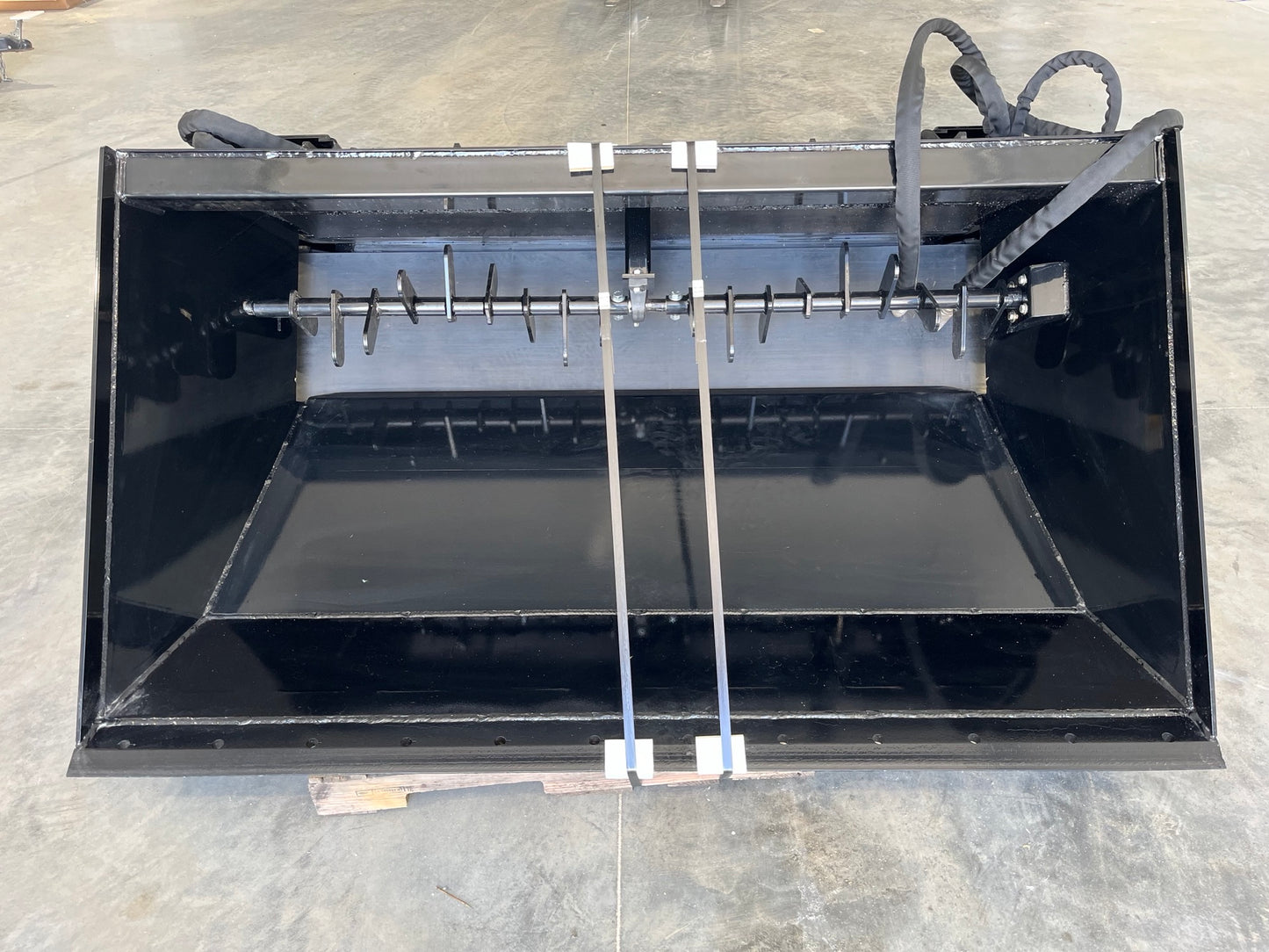

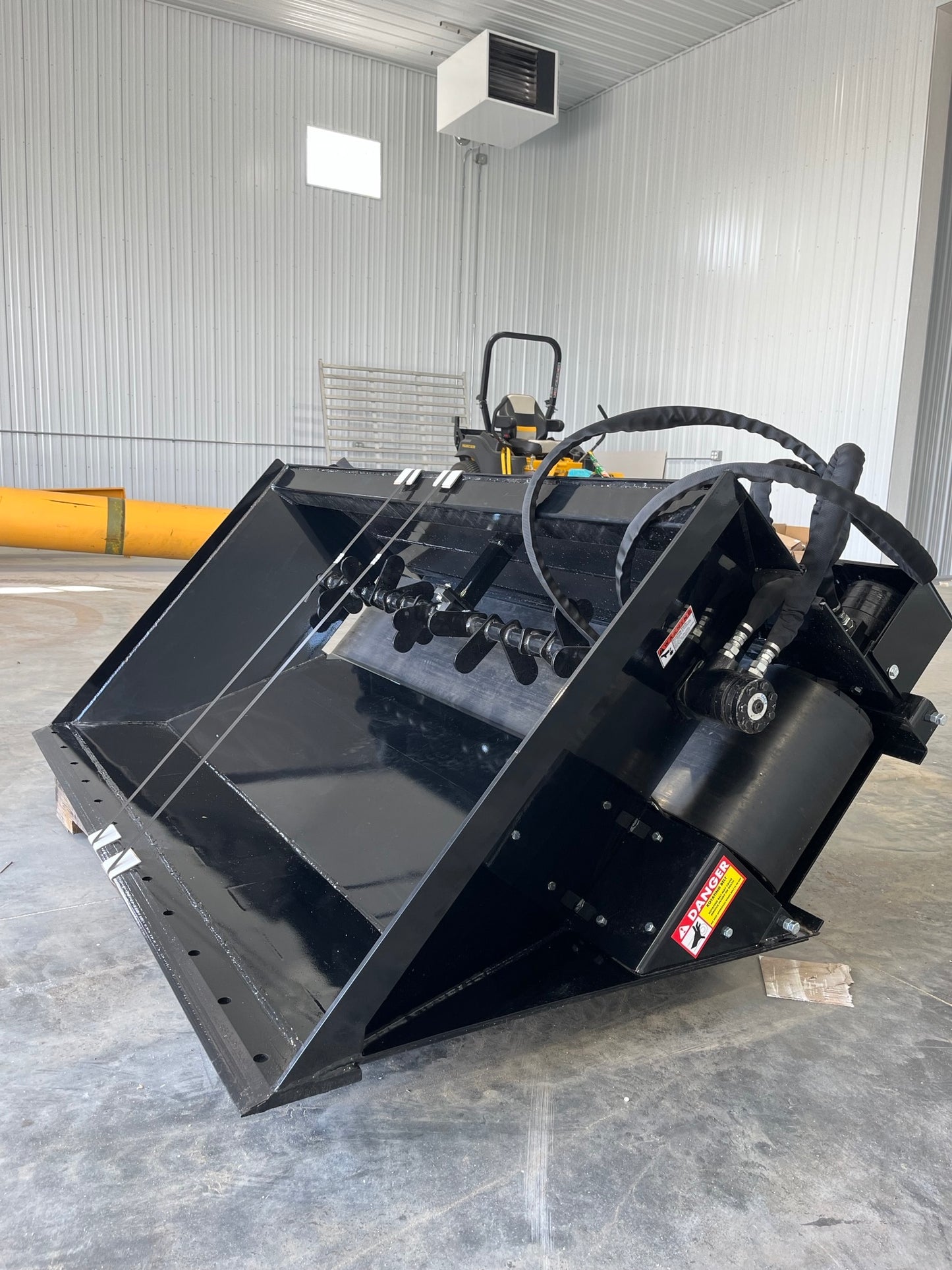

  • One to run the beater bar which helps to prevent material bridging
  • Two more to operate the flexible track that sends the material out the right or left side opening.

Asphalt or Chevron belt option.

Specifications (Text):
Part # 9000144-72 9000145-84
  72”Side Flow With Beater Bar  84” Side Flow With Beater Bar
Overall Width 85” 97”
Overall Height 44” 44”
Overall Depth 52”   52”
Struck Capacity 39.4 cu. ft 46 cu. ft.
Heaped Capacity 47.3 cu. ft 55.2 cu. ft.
Belt Motors 4.9 cu.in. - Dual Motors 4.9 cu.in. - Dual Motors
Beater Bar Motor 18.6 cu. In. 18.6 cu. In.
Flow  GPM 15 -20 GPM 15 -20 GPM
Belt Speed Adjustable  (Dual Control valves) Adjustable  (Dual Control valves)
Belt 5/16” Thick, 2-Ply Asphalt Belt 5/16” Thick, 2-Ply Asphalt Belt
Hydraulic Couplers Flat Face Flat Face
Hydraulic Hoses 1/2” 1/2”
PSI Min / Max 2,500 PSI  2,500 PSI
Bearings 1” Pillow Block (2) 1” Pillow Block (2)
Cutting Edge 5/8” x 6” 5/8” x 6”
Mounting Plate 5/16” 5/16”
Tensioners Manually adjustable - (4) locations Manually adjustable - (4) locations
Bucket Thickness 3/16” 3/16”
Wear Bars 3/8” 3/8”
Weight 1157 Lbs 1350 Lbs.
Specifications (Image):
