Dual Side Flow Bucket Heavy Material - Top Dog Attachments
Dual Side Flow Bucket Heavy Material - Top Dog Attachments
SKU: 9000144
Couldn't load pickup availability
- Regular price
- Price: $11,520.00
- Regular price
- List Price: $13,500.00
- Sale price
- Price: $11,520.00
- Unit price
- per
You Save:
$1,980.00 (15%)
PRODUCT DESCRIPTION
Description:

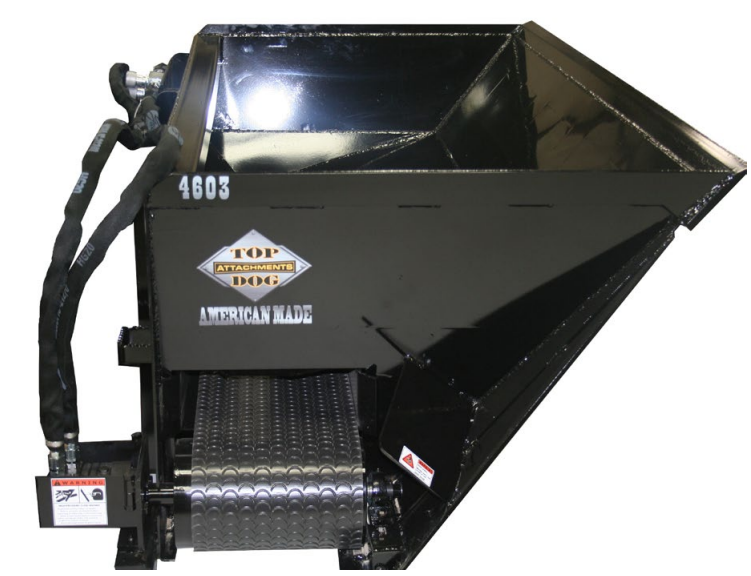

Introducing the dual side flow bucket heavy material – the perfect blend of quality, functionality.
This bucket allows material to be scooped up and discharged through one of two side openings.
Key Features:
Made in America.
Asphalt or Chevron belt option.
Specifications (Text):
| Part # | 9000144 | 9000145 |
| 72” Standard Side Flow | 84” Heavy Side Flow | |
| Overall Width | 82” | 94” |
| Overall Height | 30” | 30” |
| Overall Depth | 42” | 42” |
| Struck Capacity | 17.5 cu. ft. | 20.41 cu. ft. |
| Heaped Capacity | 21 cu. ft. | 24.5 cu. ft. |
| Motors | 4.9 cu.in. - Dual Motors | 4.9 cu.in. - Dual Motors |
| Flow GPM | 15 -20 GPM | 15 -20 GPM |
| Belt Speed | Adjustable (Dual Control valves) | Adjustable (Dual Control valves) |
| Belt | 5/16” Thick, 2-Ply Asphalt Belt | 5/16” Thick, 2-Ply Asphalt Belt |
| Hydraulic Couplers | Flat Face | Flat Face |
| Hydraulic Hoses | 1/2” | 1/2” |
| PSI Min / Max | 2,500 PSI | 2,500 PSI |
| Bearings | 1” Pillow Block (2) | 1” Pillow Block (2) |
| Cutting Edge | 5/8” x 6” | 5/8” x 6” |
| Mounting Plate | 5/16” | 5/16” |
| Tensioners | Manually adjustable - (4) locations | Manually adjustable - (4) locations |
| Bucket Thickness | 3/16” | 3/16” |
| Wear Bars | 3/8” | 3/8” |
| Weight | 1,000 Lbs. | 1,166 Lbs. |

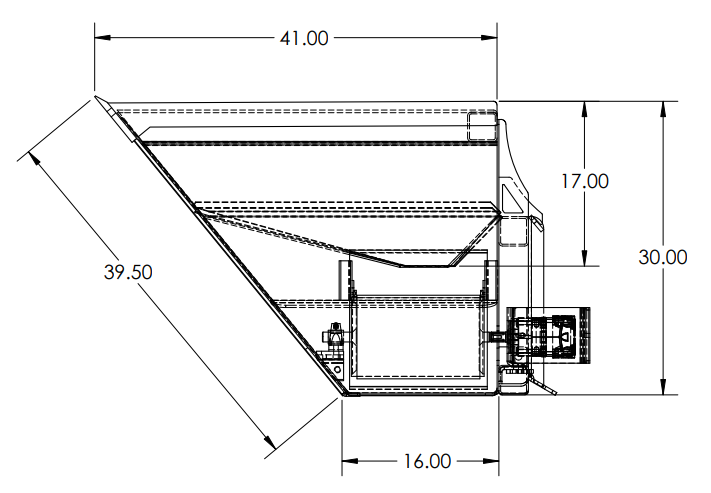

Specifications (image):
