PRODUCT DESCRIPTION
Description:

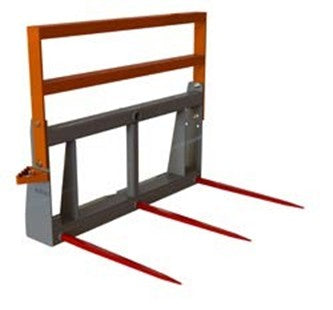

Introducing the Berlon - Bale Spears. Berlon Bale Spears Carriages are made in the USA and provide unmatched versatility in handling hay bales. Berlon's skid steer bale spear carriage attachment can be purchased with or without a bale guard. It is offered in several different configurations to accommodate moving round or square bales.
Key Features:
• Optional Bale Guard which is Easy to Install and remove
• Conus I or Conus II tines with rating from 1,795 lbs. to 3,495 lbs. per tine
• Unique 4-sided tapered tine design enables tines to slip into and retract from dense bales
• 1 Bolt on Step (either side depending on cab door)
• All models include universal mounting plate; other mounts available (No mount priced on BSCTH or BSCWL)
Specifications (Image):
Specifications (Text):

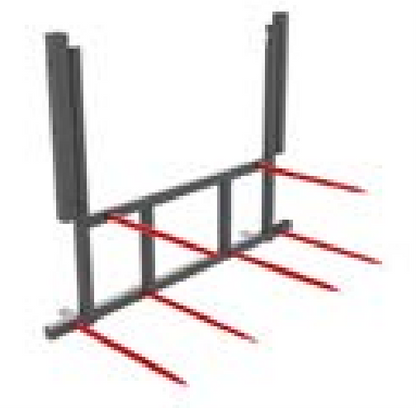

| Model# | BSC | BSCNR | BSCNR-2 | BSCSQ | BSCTH (Telehandler) |
BSCWL (Wheel Loader) |
| Width (in.) | 48 | 48 | 48 | 68 | 96 | 72 |
| Height (in.) | 39 | 21.5 | 21.5 | 22 | 96 | 75 |
| Top Tine (qty.) | 1-Conus II | 1-Conus II | 1-Conus II | None | 2-Conus II | None |
| Bottom Tines (qty.) | 3-Conus I | 3-Conus I | 3-Conus II | 4-Conus I | 5-Conus II | 4-Conus II |
| Weight (lbs.) | 152 | 135 | 140 | 201 | 562 | N/A |
| Type | Combo | Round | Round | Square | Combo | Combo |
| Guard | Yes | No | No | Optional | Yes | Yes |
| Mount | Universal | No | No | |||
| Note: Bale weight plus bale spear carriage must not exceed rated capacity of the loader. Load must be kept as close to the ground as possible to prevent tipping. Use extra caution operating over rough ground or while turning. | ||||||
| ** Unit assembled for additional charge | ||||||
