Berlon
CAL Series Bucket - Berlon
CAL Series Bucket - Berlon
SKU: CAL-72
Couldn't load pickup availability
- Regular price
- Price: $3,040.00
- Regular price
- List Price:
- Sale price
- Price: $3,040.00
- Unit price
- per
PRODUCT DESCRIPTION
Description:

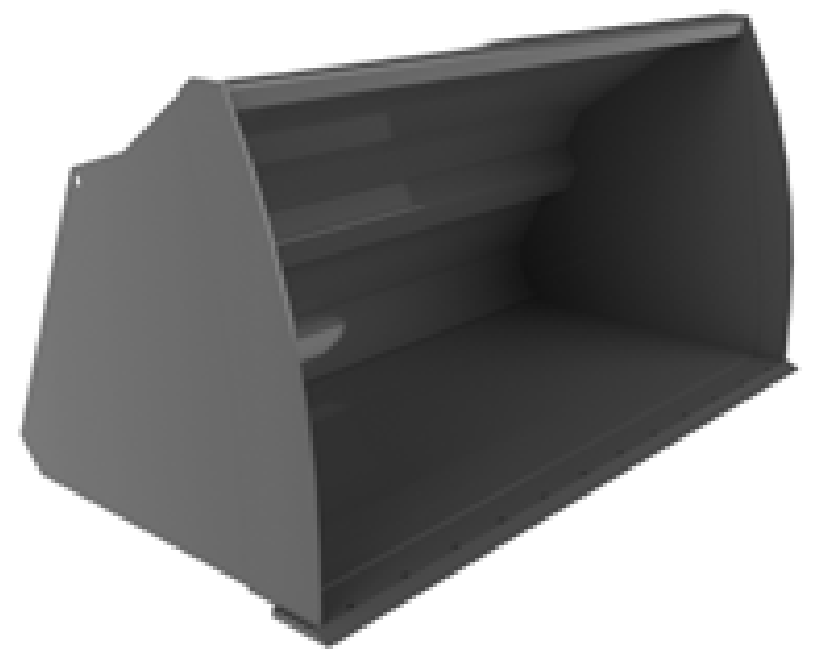

Introducing the Berlon - Compact Articulating Loader Bucket. This bucket is ideal for loading feed mixers and other heavy duty material handling equipment. Designed for feed, snow, dirt, gravel.
Key Features:
• 1/4” thick steel body
• 3/4” x 6” weld-on cutting edge with holes
• Radius kick-out plate top and bottom for added strength and easy clean out
• Reinforcement tube across back of bucket for added strength
• Bucket bottom includes 5 wear bars for durability
Bucket Options
• Bolt-On Cutting Edge
• Bolt-On Rake Tooth Edge
• Bolt-On HD Teeth (Factory Installed Only)
• Bolt-On Tooth Bar
• Bolt-On Tooth Bar, Over Bolt-On Edge
Specifications (Image):
Specifications (Text):
| CAL Series (Model #) | Inside Dimension (in.) | Outside Dimension (in.) | “A” Height (in.) | “B” Depth (in.) | “C” Angle (deg.) | Weight (lbs.) | Heaped Capacity (cu. ft.) | Wear-bars (1/2” x 3”) | Dimple Plate | HD Package |
| CAL-72 | 72 | 73.5 | 35.0 VERT | 40 | 65 Degree angle; other angles available |
970 | 38.6 | 5 | No | Standard |
| CAL-78 | 78 | 79.5 | 35.0 VERT | 40 | 1000 | 41.75 | 5 | No | ||
| CAL-84 | 84 | 85.5 | 35.0 VERT | 40 | 1030 | 45.1 | 5 | No | ||
| CAL-96 | 96 | 97.5 | 35.0 VERT | 40 | 1100 | 51.6 | 5 | No | ||
| Includes MPUF-1 Universal Mounting plate. Other mounts available. Call for pricing. | ||||||||||
|
HD Package* Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP. |
||||||||||
| Add $145.00 for following mounts: MPE8TC (Euro) | ||||||||||
