Haugen Snow Blade — Skid Steer Attachment
Haugen Snow Blade — Skid Steer Attachment
SKU: HSB 84
Couldn't load pickup availability
- Regular price
- Price: $4,875.00
- Regular price
- List Price:
- Sale price
- Price: $4,875.00
- Unit price
- per
PRODUCT DESCRIPTION

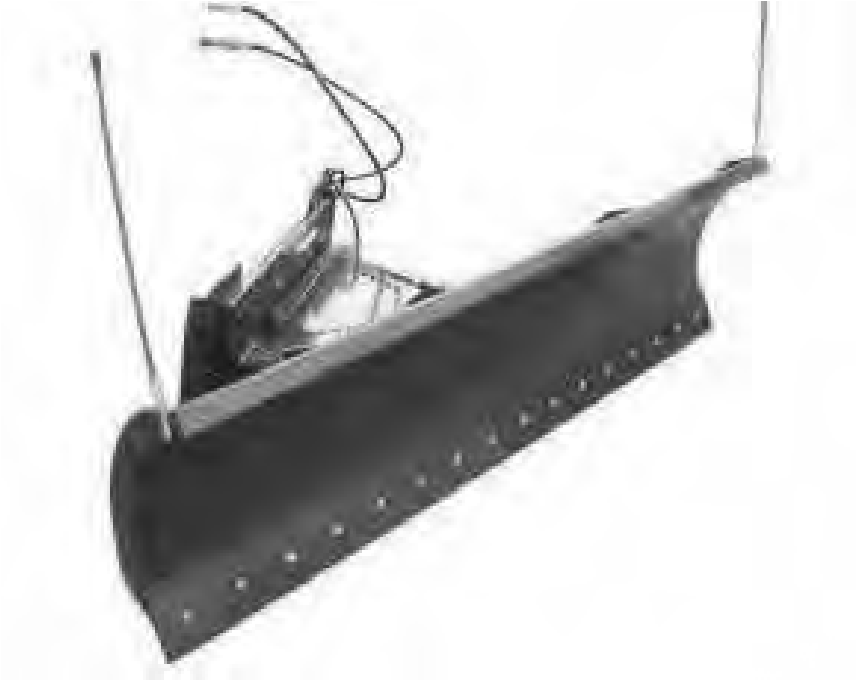

Haugen skid-steer snow blades with full trip moldboard, hydraulic angle (30° left or right), and +/−5° oscillation. Reversible 3/8"×6" cutting edge (1060 material). Greased pins and oscillation points, adjustable and rotatable skid shoes for long wear. Two hydraulic angle cylinders (1.5"×10"). Poly cutting edges available as an option.
Key Features
- Hydraulic angle: 30° right or left
- Oscillation: +/−5°
- Reversible 3/8"×6" cutting edge, 1060 material
- Greaseable pins and oscillation points
- Skid shoes easily adjustable and rotate for longer wear
- Full trip blade
- Two hydraulic cylinders: 1½"×10"
- Poly cutting edges available as an option
- Made in the USA by Marv Haugen Enterprises, Casselton ND
Specifications
| Model | Straight Width | Angled Width | Moldboard Height | Weight | Price |
|---|---|---|---|---|---|
| HSB 84 | 84" | 70" | 28" | 600 lbs | $4,875 |
| HSB 96 | 96" | 82" | 28" | 625 lbs | $4,995 |
| HSB 108 | 108" | 94" | 28" | 675 lbs | $5,145 |
Mini skid-steer snow blades (HSBM series, 48"–60") are available separately.
Compatibility
Fits standard skid steer quick-tach.
