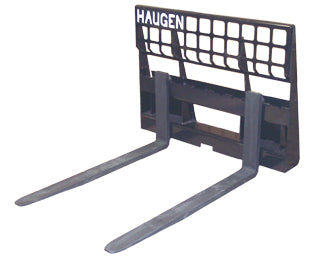

Haugen Skid-Steer Pallet Forks - Standard Rail Frame
Haugen Skid-Steer Pallet Forks - Standard Rail Frame
SKU: MPF 42-10
Couldn't load pickup availability
- Regular price
- Price: $1,135.00
- Regular price
- List Price:
- Sale price
- Price: $1,135.00
- Unit price
- per
PRODUCT DESCRIPTION
Haugen's standard rail pallet forks mount to any skid-steer quick attach and get to work. Rail-style adjustable tines, 45" frame width, five length and capacity configurations. Built heavy in Casselton, ND.
Choose Your Configuration
Tine size by configuration: The 42" and 48" 5,000 lb models use 1.50" x 4" tines. All 6,000 lb models — 48", 60", and 72" — use 1.75" x 4" tines. Attachment weight ranges from 385 to 560 lbs depending on configuration; see the spec table below for exact figures by model.
Specifications
| Model | Fork Length | Fork Size | Capacity | Weight | Price |
|---|---|---|---|---|---|
| MPF 42-10 | 42" | 1.50" x 4" | 5,000 lbs | 385 lbs | $1,135.00 |
| MPF 48-10 | 48" | 1.50" x 4" | 5,000 lbs | 395 lbs | $1,140.00 |
| MHPF 48-10 | 48" | 1.75" x 4" | 6,000 lbs | 495 lbs | $1,280.00 |
| MHPF 60-10 | 60" | 1.75" x 4" | 6,000 lbs | 530 lbs | $1,399.00 |
| MHPF 72-10 | 72" | 1.75" x 4" | 6,000 lbs | 560 lbs | $1,499.00 |
Features
- 45" frame width — fits standard skid-steer quick attach
- Rail-style adjustable tines
- 42", 48", 60", and 72" tine lengths available
- 5,000 or 6,000 lb lift capacity depending on configuration
- Heavy duty construction — Made in the USA
Manufactured by Marv Haugen Enterprises, Casselton, ND.
